What Is The Draft Of A Boat?
If you are a boat enthusiast or just curious about how vessels are made, then you will want to know what the draft of a boat is.
While it may sound like something difficult to understand, this important aspect of marine engineering is surprisingly simple and easy to comprehend given its importance in maneuvering boats on the water.
Before buying our shallow draft sailboat we did a lot of research into how it would affect things like speed and maneuverability, and it turns out draft has a lot to do with how well a boat will perform. But there are lots of other important considerations to make too.
In this blog post, we will discuss what exactly the draft of a boat is and how it affects not only performance but other key parts of sailing and liveaboard life too.
From analyzing different types of drafts and their advantages or disadvantages to understanding why drafting works at all – by the end, you’ll have an excellent grasp on just why it’s such an integral part when designing ships big or small!
Table of Contents
- Why Is Boat Draft Important?
- How Do You Calculate The Draft Of A Boat?
- What Is The Average Draft Of A Boat?
- How Does Boat Draft Affect Where You Can Sail?
- Does Boat Draft Include The Prop?
- Which Boats Have The Shallowest Draft?
Why Is Boat Draft Important?
Draft refers to the depth that must be taken into account when designing and constructing boats.
It determines the stability, speed, and navigability of any vessel in the water, as well as its ability to safely navigate shallow waters such as rivers, lakes, and seas.
A good understanding of this concept can help those looking to buy, build or repair boats make smart decisions based on specific needs for their applications.
The draft of a boat alongside other factors can also affect the capsize ratio of the boat you’re in, so it’s well worth looking into it before you make a purchase.
How Do You Calculate The Draft Of A Boat?
The draft of a boat is the depth of water needed to float it, and it can change depending on factors like its load and hull shape.
To calculate the draft of your boat, you need to measure the hull from where it hits the water surface, to the lowest point (usually the bottom on the keel).
Most boats will have their draft included in the paperwork. It’s important to note that this is the draft when the boat is dry and unladen. Where the boat sits in the water will change slightly (or even significantly) depending on factors such as how much weight it’s carrying and how wet the hull is.
You can do a calculation to work out the draft of your sailboat if you know certain figures.
DR=(W/D)/(L∗W)∗3
- Where DR is the estimated draft (ft)
- W is the weight of the boat (lbs) Don’t forget passengers, fuel etc.
- L is the length of the boat (ft)
- W is the width of the boat (ft)
- D is the density of the water (lbs/ft^3) salt water has a different density than fresh
It might be easier to just jump in and measure the boat’s draft from in the water when you’ve stocked up your boat!
What Is The Average Draft Of A Boat?
The average draft of a boat can vary significantly depending on the size and design of the vessel.
Generally, smaller boats have a shallow draft while larger boats can have much deeper drafts.
A large cruise ship, for example, may have a draft of up to 15 meters, while a small recreational sailboat may only have a draft of 0.9 meters.
Monhull sailboats also tend to have deeper drafts than motor cruisers. Where as catamarans have very small drafts.
Some boats have lifting keels that can change the draft of the boat, so you can use a deeper keel when sailing for added stability or lift the keel when entering shallow anchorages.
In general, it is the size of the vessel and the type of sailboat keel that will affect the draft of a boat.
How Does Boat Draft Affect Where You Can Sail?
The draft of a boat is one of the most important factors to consider when planning where to sail.
Draft refers to the depth of the water that a vessel requires in order to pass, making it an essential component of selecting waterway locations.
You’ll need to plan trips around areas with depths greater than your boat’s draft. This is easy to do when you have decent charts of the area available, but when you’re maneuvering in less well-known areas you will have to use a decent depth sounder and lots of local knowledge to help you out!
Depending on the size and style of the boat, the draft may be as shallow as 8 inches but can reach up to 12 feet deep for larger vessels.
It is wise for any boater to understand their vessel’s draft before taking it out on unique bodies of water; deeper drafts may restrict more waterways than anticipated.
Ultimately, your boat’s draft will determine whether or not you have full access to exploring new destinations on the open seas – so plan accordingly!

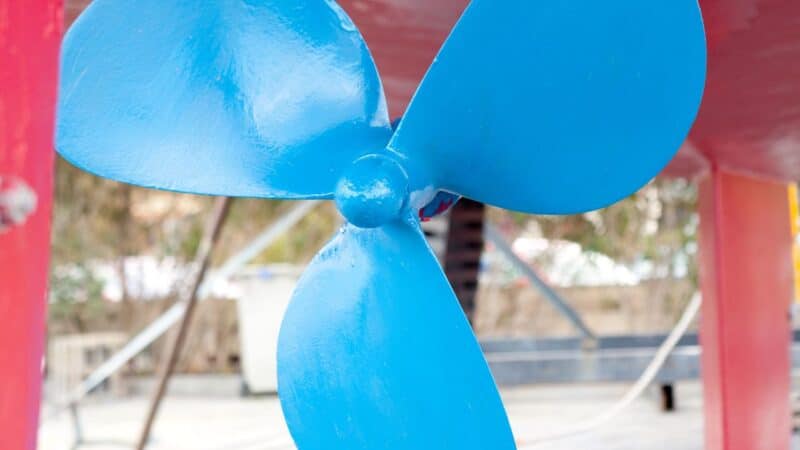

Does Boat Draft Include The Prop?
Boat draft is typically measured from the surface of the waterline to the lowest point beneath.
The prop is a primary undercarriage component of a boat and therefore can determine how deep the boat will sit in water.
Usually, the keel will be the deepest part of a boat and in these cases, the prop depth doesn’t make a difference, but in some boats, the prop will sit lowest in the water.
Remember, the whole point of calculating the draft of the boat is to help determine the depth of water you can navigate in, so if your prop is the lowest point and will hit the ground first, it needs to be included in the calculations.
Which Boats Have The Shallowest Draft?
Boats with the shallowest draft are usually those that are smaller in size, often inflatables or small sailboats. This is due to their lightweight materials and air-filled components, which allow them to quite literally float closer to the top layer of the water.
However, there are some great shallow draft liveaboard sailboats out there if you look hard enough. They provide decent living space but can also sneak into shallow waters when you desire.
If you opt for a boat with a lifting keel or centreboard you can have the best of both worlds. Boats with these options tend to track better than shallow draft boats in big seas, but they can also get into shallow anchorages when necessary.
Conclusion: What Is The Draft Of A Boat
Ultimately, understanding what the draft of a boat is and how to properly measure it can help any boat enthusiast to determine when and where it’s safe to navigate their vessel.
With this knowledge, you can securely traverse rivers, oceans, and other waterways with confidence knowing that your vessel won’t run aground.
As each body of water is unique and has its own dangers presented in the form of unseen obstacles, measuring the draft of your boat with precision is fundamental for anyone who loves spending time on the water.
Remember, always practice safe boating while remaining mindful of whatever waters you’re entering at all times.
Lastly, don’t forget to enjoy yourself!
